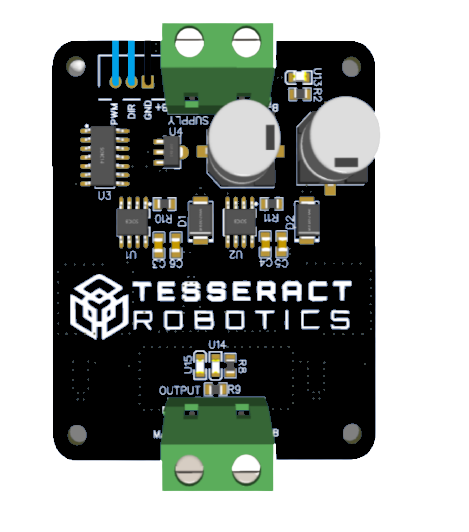

DC Motor Driver 20 Amps 24V Rey-20-v1.1

REY 20 V1.1 is designed to drive medium to high power DC brushed motors providing
up to 120 A peak and 30A continuous current at PWM signal up to 20 KHz. Motor drivers
can be interfaced with both 3.3V and 5V logic levels. It is suitable for high-performance
robots, Robocon, Robo-cup, US First, Battle robots and many more robotics applications.

Features:
● Bi-directional control for brushed DC motor.
● Motor Voltage: 5V – 24V.
● Maximum Current: 120 A peak (1 second), 30A continuously.
● 3.3V and 5V logic level input.
● Speed control PWM frequency up to 20KHz.
